Commercial vehicles Semitrailers Lowboy semi-trailers / low loaders
Listing
Dortmund
7,673 km
Lowbed
Faymonville3-Achs-Semi-hydr. Ladebett-hydr. Rampen-Holzbelag
Call
Condition: new, empty load weight: 11,400 kg, maximum load weight: 36,600 kg, overall weight: 48,000 kg, axle configuration: 3 axles, loading space length: 13,100 mm, loading space width: 2,540 mm, loading space height: 860 mm, suspension: air, tire size: 235/75 r 17,5, color: grey-black, Equipment: ABS, Gooseneck:
- Gooseneck in SNT design to optimize the loading area length, length approx. 3,700 mm
- Rear gooseneck with bevel approx. 1,000 mm x 6°.
- Technical fifth wheel load: 18,000 kg
- For SZM: 4 x 2 or 6 x 2
Loading area:
- Loading area, length approx. 9,400 mm, with rear chamfer approx. 900 mm x 6°.
- Loading platform after the gooseneck, can be raised and lowered hydraulically.
- Loading platform length approx. 3,000 mm. Loadable up to approx. 9,000 kg
Ramps:
- 1 pair of two-part hydraulic steel ramps, approx. 4,350 x 900 mm.
- Hardwood decking.
- Hydraulically folding ramp tips.
- Ramps can be moved individually hydraulically by approx. 235 mm outwards and approx. 365 mm inwards.
Axles and suspension:
- BPW axles and suspension, two axles rigid, one axle self-steering.
- Technical axle load: 12,000 kg
- Electromagnetic reverse lock via reverse gear and manual activation.
- Air suspension with lifting and lowering valve.
- Axle tool.
Tires:
- 235/75 R 17.5 3PMSF dual tires.
- Load index 143/141J (144/144F)
Brake system:
- WABCO EBS-E braking system in accordance with EU regulations.
Lighting system:
- 24-volt lighting system in "ASPÖCK-NORDIK full LED" (ASS 3)
- Design in accordance with EU regulations.
Metallization:
- Standard HRM metallization (High Resistance Metallization) of the outer frame.
- Complete steel construction shot-peened, then the defined visible surfaces metallized with
- metallization with ZINACOR 850 (zinc 85% - aluminium 15%).
Painting:
- 6-K final treatment:
- Complete steel construction shot-blasted after welding.
- One coat of zinc-based primer, one coat of adhesion primer.
- Final coat with 2 layers of 2-component paint (acrylic) in one color in nova grey, followed by sealing of the cavities with special wax. Rims in silver.
Steel construction:
- Steel construction made of high-strength fine-grain steels.
- Steel grades:
S355J2+N/S355MC (yield strength 355MPa)
S690QL/S700MC (yield strength 690MPa)
Welder DIN-EN 287-1 tested.
MAG welding process according to EN ISO 4063.
Shielding gas M21 according to EN ISO 14175
Accessories included:
Gsdpfx Aaeiuy Npoxskd
- Steel end wall, pluggable, approx. 400 mm high.
- Connection strip for supply lines to the SZM, attached at the height of the outer frame profile.
- ASPÖCK-UNIBOX on the connection strip at the front with 24N, 24S & 15-pin sockets.
24N connection in accordance with ISO-1185
24S connection in accordance with ISO 3731
15-pin connection in accordance with ISO-12098
- 1 spare wheel with mounting adapter under the cargo bed on the right in front of the axles.
- Parking position on the gooseneck for the warning signs when not in use.
- Outer support of the gooseneck with fastening holes for screwable lashing rings.
The first hole approx. 200 mm from the front, then approx. every 400 mm.
2 pairs of screw-in lashing rings included (LC 5,000 daN).
- One fastening hole in the rear upper area of the outer beams of the gooseneck for a screw-in lashing ring.
1 pair of screw-in lashing rings included (LC 10,000 daN).
- 1 pair of recessed lashing rings at the rear in the middle of the gooseneck (LC 5,000 daN).
- 3 pairs of recessed lashing rings inside on the outer beam of the gooseneck (LC 5,000 daN)
- 3 pairs of lashing rings in the middle of the gooseneck for (LC 5,000 daN).
- Approx. 40 mm hardwood planking above the gooseneck.
- 2" kingpin
- On the gooseneck, 1 pair of plug-in aluminium side plates, approx. 400 mm high, in anodized finish.
- On the gooseneck, one plug-in aluminum
Listing
Kaltenkirchen
7,674 km
Lowbed
HumbaurHumbaur 3-Achs Auflieger LIA&NLA/verzinkt/3mPaket/Hydr.
Call
Condition: new, maximum load weight: 38,000 kg, overall weight: 48,000 kg, axle configuration: 3 axles, loading space length: 12,180 mm, loading space width: 3,000 mm, loading space height: 890 mm, suspension: air, Equipment: ABS, HUMBAUR 3-axle low loader semi-trailer with offset loading area, Typ. HTS30K-V44+
---
INCLUSIVE lift axle
INCLUSIVE self-steering axle with SAF air suspension
INCLUSIVE 3-meter package
INCLUSIVE stowage box under cargo bed
INCLUSIVE TIM/WABCO Smart Board for axle load display
INCLUSIVE Hot-dip galvanized chassis
INCLUSIVE ALU drop sides and stowage box to the semi-trailer platform
INCLUSIVE stake pockets and lashing ring package
INCLUSIVE excavator trough
Godpfx Ajkn N S Usaxjkd
Equipment: V44+
* Gross vehicle weight 48,000 kg
* Payload approx. 38,000 kg
* Chassis frame and ramps hot-dip galvanized
* SAF air suspension unit including lifting and lowering
* INCLUSIVE hot-dip galvanized chassis
* Lift axle with starting aid and self-steering axle
* EBS electronic braking system
* WABCO Smart Board for axle load display
* LED lighting system
* Loading height approx. 890 mm
* Saddle height: approx. 1,230 mm
* 235/75R17.5 tires - 12-ply
* Drop deck length approx. 8,680 mm incl. slope
* Saddle platform length approx. 3,500 mm incl. slope
* Excavator trough
* 2" kingpin can be offset by 340 mm for 2+3-axle SPM
* Gooseneck with 400 mm bulkhead
* 400 mm folding aluminum side wall + storage box with lid
* Ramp rail at the offset to the gooseneck
* 3 pairs of lashing rings 6 tons sunk into the raised bed
* 3 pairs of lashing points 3 tons in the bunk bed outer frame
* 5 pairs of lashing rings 10 to. recessed in the low bed
* 3 pairs of lashing eyes 6 to. screwed to the outer frame
* 3 pairs of stake pockets in the outer frame of the high bed
* 5 pairs of stanchion pockets in the low bed outer frame
* 3-meter widening package with folding boom, wooden planks
* Sheet steel toolbox under the cargo bed, lockable, mounted on the side under the cargo bed as a storage compartment for wooden planks
* Warning package with lighting
* Rotating beacon at the rear
* 1-section ramps approx. 3150 x 750 mm - drive-on angle approx. 10°
* Softwood flooring on ramps, low loading & semi-trailer platform
* Spring lifting gear to the ramps
* COC papers
* 48,000 kg GVW only with special permit according to §70
* Climbing rails on the ramp slope
* Brake connection: red/yellow
* Electrical system: 3-way socket with 2x7-pin socket (1 x ISO 1185 / 1x ISO 3731, 24 V-N/24 V-S) and 15-pin socket ISO 12098
---
Example pictures - equipment may vary !
∗Stock vehicle - promptly available
∗Subsequent sale reserved
∗Price ex works
Listing
Büyükkayacık OSB
10,138 km
Low loader semitrailer
GVN Trailer3 Axle Standart Lowbed
Call
Condition: new, Year of construction: 2025, GVN Trailer 3 Axle Standart Lowbed
Gjdpfx Asqxa Szsaxekd
Please get contact with us for more informaiton;


Over 120,000 purchase inquiries every month
Get information now
+49 201 858 95 507
Listing
Dortmund
7,673 km
Lowbed
Goldhofer2+4-Achs-Tiefbett-Kombination VP 6
Call
Condition: new, empty load weight: 27,000 kg, maximum load weight: 72,500 kg, overall weight: 99,500 kg, axle configuration: > 3 axles, loading space length: 5,500 mm, loading space width: 2,750 mm, loading space height: 550 mm, suspension: other, tire size: 245/70 r 17,5, color: grey, Equipment: ABS, Gooseneck, removable:
Loading area 3,750 mm x 2,480 mm
Technical fifth wheel load up to max. 30,000 kg
hydro-mechanical steering
hydraulic lifting and lowering function
2 support cylinders
Operating elements for hydr. functions Direction of travel left
Access ladder to the gooseneck
Hydr. claw lock for bridge or chassis
Multifunctional quick coupling
Lighting for the operating elements of the gooseneck under the folding protection cover
3.5" kingpin
2-axle running gear at the front:
Gsdpohlz Rnofx Aaxjkd
4 wheels per axle line, self-aligning axle units with ball bearing slewing ring bearings
Axle make: Gigant
Chassis width 2,750 mm / wheelbase 1,510 mm
Hydr. axle compensation, stroke 600 mm
Ride height: 1,145 mm +340 mm/-260 mm
Sheet metal floor covering
Brake system 2-axle chassis front:
Drum all-wheel air brake system
Automatic load-dependent brake (ALB) (AGS)
Parking brake by means of spring-loaded cylinders
EBS / ABS (electronic braking system)
Socket for EBS on the front of the gooseneck
Duomatic coupling for brake connection between chassis and cargo bed
Excavator bridge 5,500 mm to 10,000 mm:
Box-shaped inner/outer tube
Overall height of the outer tube 400 mm
Loading height 550 mm, ground clearance 150 mm
Preparation of the outer tube for attaching folding extensions
Rear 4-axle chassis:
4 wheels per axle line, self-aligning axle units with ball bearing slewing ring bearings
Axle make: Gigant
Chassis width 2,750 mm / wheelbase 1,510 mm
Hydr. axle compensation, stroke 600 mm
Ride height: 1,100 mm +385 mm/-215 mm
Sheet metal floor covering
Combined excavator skip
Rear 4-axle chassis brake system:
Drum brake with automatic load-dependent brake (ALB) (AGS)
Dual-line all-wheel air brake system
Parking brake by means of spring-loaded cylinders
EBS / ABS (electronic braking system)
Vehicle rear:
Standard 90° design, 580 mm overhang from the center of the last axle
Without ramp attachment to the end cross member
Hydraulics:
Hydraulic connection for SZM (1 set), connections for tractor (without lines), pump in the SZM with maximum flow rate of 60 l/min, additional flow divider for tractor flow rate of up to 120 l/min.
6-way block tap in the gooseneck, for depressurizing the gooseneck linkage
Hydraulic unit with Hatz diesel engine 10 kW, noise-reduced, hydraulic pump output 12 l/min, incl. electric starter and manual throttle adjustment, on the side of the gooseneck, standard paint finish in DB7350 nova gray, weight approx. 460 kg
Accessories included:
Spare wheel holder on the loading area of the gooseneck with one spare wheel fitted
2 pairs of wheel chocks
Aluminum drop sides, closed on 3 sides (with rear wall) 400 mm high, stanchions (can be folded down and removed)
Goldhofer "Premium" stowage box, front mounting on gooseneck, 45° chamfered corners, dimensions approx. 550 x 400 x 2,540 mm, with side doors and rectangular lid that folds forwards, doors and lid lockable, 2 plug-in partitions inside.
2 pairs of warning signs, 423 x 423 mm, with 3 LED position lights, incl. push-on tube for rotating beacon, bracket for warning signs extendable to max. 4,200 mm.
Additional warning sign holder, mounted on the front chassis
Rotating beacon LED (2 pieces), plug-in, light switched via parking light
Central lubrication system, type "Progressiv" for normal grease, with 3 pumps
2 pairs of lashing point(s) M36 screwable LC=16,000 daN, loose
1 "Convoi Exceptionnel" sign
1 set of aluminum drive-on wedges for driving onto the front of the excavator bridge, 2-part de
Listing
Büyükkayacık OSB
10,138 km
Low loader semitrailer
GVN Trailer5 Axle Lowbed
Call
Condition: new, Year of construction: 2025, 5 Axle Lowbed
Gjdpjrlm Txsfx Aaxskd
Please get contact with us for more informaiton;
Listing
Dortmund
7,673 km
Lowbed
FaymonvilleMAX Trailer 4-Achs-Tele-Semi-Rampen-nlla
Call
Condition: new, maximum load weight: 49,000 kg, overall weight: 60,800 kg, axle configuration: > 3 axles, loading space length: 9,300 mm, loading space width: 2,540 mm, loading space height: 860 mm, suspension: air, tire size: 235/75 r 17.5, color: grey, Equipment: ABS, Gooseneck:
-Gooseneck with beveled corners at the front 45° and with rear bevel of approx. 750 mm x 10°
-3 pairs of lashing rings (LC 5,000 daN)
-Hardwood decking 30 mm thick
Loading area in extendable version:
Gksdpfsh Etf Rsx Aaxsd
-Loading surface in extendable version with rear bevel of approx. 1,000 mm x 8°
-5 pairs of lashing rings can be folded outwards (LC 5,000 daN)
-3 pairs of lashing rings can be folded outwards (LC 10,000 daN)
-1 pair of lashing rings lying in the front of the cargo bed (LC 10,000 daN)
Cut-outs in the outer frame of the cargo bed for attaching lashing straps. (LC 2,000 daN)
-Hardwood flooring approx. 48 mm thick, checker plate flooring over the axles
Removable two-part ramps:
-A pair of galvanized two-part steel ramps approx. 2,750 + 1,400 x 800 mm with approx. 48 mm thick hardwood decking
-Ramp with hydraulically folding and unfolding ramp sections, hydraulic lifting gear and hydraulically movable
-Maximum load per pair: 40,000 kg
Seat posts:
-JOST fifth wheels (mechanical) with 2-speed gearbox for 24 t lifting load (50 t test load)
Axles and tires:
-BPW axles, two axles rigid two axles self-steering, air-suspended, with drum brake, with lifting/lowering function
The self-steering axles with electro-magnetic reverse lock can be activated via reverse gear or manually
-axle tool
-235/75 R 17.5 tires
Brake system:
-brake system in accordance with EU regulations with EBS-E (4S3M)
Steel construction:
-steel construction made of high-strength fine-grained steels
-Steel grades:
-S355J2+N/S355MC (yield strength 355MPa)
-S690QL/S700MC (yield strength 690MPa)
Coating:
-First-class and durable corrosion protection of the standard shot-peened welded frame guaranteed by a 2-component (2K) zinc dust primer
A high-quality 2-component (2K) top coat in a single color in nova grey
Electrical system:
-Electrical system in accordance with EU regulations, 24 volt ASPÖCK-NORDIK lighting (ASS3)
ASPÖCK-UNIBOX on the front connection strip with 24N, 24S & 15-pin sockets
Accessories included:
-2" kingpin
-One galvanized steel bulkhead approx. 400 mm high
-One spare wheel with holder in front of the bulkhead
-Yellow-red air couplings on the galvanized connection strip at the front
-4 wheel chocks with holder on the bulkhead
-Mounting in the rear area of the gooseneck for ALU docking ramps
-Galvanized folding supports under the bevel of the cargo bed
-One bracket for a rotating beacon
-Cover plates to bridge the gap between ramps and cargo bed
-White reflector tape in accordance with EU regulations on the sides, on the extension and red at the rear
-Electric hydraulic unit
-On the gooseneck and on the ramps on the left and right a holder for the warning signs including socket
-Control valves for the ramps mounted on the right-hand side of the trailer
-One mud flap at the rear of the trailer
-Manual and description on USB stick
-ALU drop sides and rear wall can be plugged onto the gooseneck approx. 2,440 x 400 mm
-The rear galvanized stanchions are removable (length of the body approx. 2,560 mm)
-4 pairs of WADER container pockets in the loading area for one 20ft, 2x 20ft or one 40ft container
-7 pairs of stanchion pockets for 100 x 50 mm stanchions in the outer frame of the cargo bed
-Galvanized extensions, extendable by approx. 230 mm per side
-Lift axle on the front axle with controls
-Square climbing rails 20 x 20 mm
-BEKAMAX central lubrication system
-Four warning signs extendable by approx. 400 mm approx. 423 x 423 mm
Listing
Büyükkayacık OSB
10,138 km
Low loader semitrailer
GVN Trailer3 Axle Tramex Platform Lowbed
Call
Condition: new, axle configuration: 3 axles, Year of construction: 2025, We have all Europe documents!
We can delivery the trailers with FOB-EXW-CPT-CFR-CIF
Gkedpfx Aoqx Nfgeaxsd
If you have an interest please contact with us
Listing
Dortmund
7,673 km
Lowbed
Faymonville4-1+3-Achs-Tele-Semi-Radmulden-Rampen zg
Call
Condition: new, empty load weight: 15,550 kg, maximum load weight: 47,450 kg, overall weight: 63,000 kg, axle configuration: 3 axles, loading space length: 8,800 mm, loading space width: 2,540 mm, loading space height: 860 mm, suspension: air, tire size: 235/75 R 17,5, color: grey, Equipment: ABS, Gooseneck:
-Gooseneck in SNT design to optimize the loading area length, length approx. 3,700 mm
-Rear gooseneck with bevel approx. 1,000 mm x 10°
Loading area:
-Loading area in extendable design, length approx. 8,800 mm, with bevel at the rear approx. 500 mm x 10°
-One recess protruding into the loading surface and into the chamfer to accommodate the excavator dipper arm
-Pneumatic locking with conical locking pins and reinforced locking positions
-Hardwood covering on the bevel of the loading area
Ramps:
-1 Pair of two-part steel ramps with a length of approx. 4,350 mm and a width of approx. 900 mm
-Ramps with hardwood decking
-Hydraulically folding ramp tips
-Ramps can be moved individually hydraulically by approx. 235 mm outwards and approx. 215 mm inwards
-Square climbing ledges 20 x 30 mm, approx. every 200 mm on the outer frame of the ramp
Axles and suspension:
-BPW axles and suspension, 1st axle with preload steering, all other axles with forced hydromechanical steering
-Technical axle load: 12,000 kg
-1st axle with electromagnetic reverse lock via reverse gear and can be activated manually
-Air suspension with lifting and lowering valve
-235/75 R 17.5 twin tires
-TPMS tire monitoring system in accordance with ECE R141
-TPMS tire monitoring sensors mounted in all wheels including spare wheels
Accessories included:
-steel front wall, pluggable, approx. 400 mm high
-3 kW electro-hydraulic unit for controlling the hydraulic processes, with the exception of hydraulic cable winches
-Parking position on the gooseneck for the warning signs when not in use
-1 Spare wheel
-On the gooseneck 1 pair of plug-in ALU side panels, approx. 400 mm high, anodized
-One plug-in ALU rear panel on the gooseneck, approx. 400 mm high, anodized
-Approx. 40 mm thick hardwood covering over the gooseneck, checker plate covering over the kingpin
-2" kingpin
-Guide plate from the gooseneck for the saddle plate, approx. 500 mm wide
-4 wheel chocks
-Mechanical seat posts with 2-speed gearbox and crank
-JOST module B - static test load = 50,000 kg
-1 Intermediate table, approx. 300 mm wide
-Widenings (galvanized) extendable by approx. 230 mm per side
-Wheel recesses with square climbing rails
-ALU covers for the wheel recesses
Gsdpfx Aaok Aht Uoxjkd
-1 pair of mechanical rear supports
-Steering can be operated from the front and rear by cable remote control, with tracking control of the axles
-1st axle with automatic lift axle function
-Central lubrication system with 1 pump, BEKAMAX brand
-Radio remote control for operating the self-steering, in addition to the cable remote control, with 2 indicator lights on the receiver as toe-in control
-Wabco Smart Board System
-4 warning signs, approx. 423 x 423 mm, extendable by approx. 400 mm, incl. 2 position lights and brackets for rotating beacon
Listing
Büyükkayacık OSB
10,138 km
Low loader semitrailer
GVN Trailer4 Axle Extendable Lowbed
Call
Condition: new, Year of construction: 2025, GVN Trailer 4 Axle Extendable Lowbed
Godoqxq Aispfx Aaxjkd
Please get contact with us for more informaiton
Listing
Dortmund
7,673 km
Lowbed
Faymonville4-2+2-Achs-Tele-Semi m. Radmulden u. Rampen
Call
Condition: new, empty load weight: 13,500 kg, maximum load weight: 51,500 kg, overall weight: 69,500 kg, axle configuration: > 3 axles, loading space length: 8,800 mm, loading space width: 2,540 mm, loading space height: 860 mm, suspension: air, tire size: 235/75 r17.5, color: grey, Equipment: ABS, Gooseneck:
Gooseneck in SNT design to optimize the loading area length, length approx. 3,700 mm
Rear gooseneck with bevel approx. 1,000 mm x 10°
Cargo bed:
Telescopic cargo bed, length approx. 8,800 mm, with rear chamfer approx. 500 mm x 10°
Recess in the chamfer and protruding into the loading area to accommodate the excavator dipper arm
Pneumatic locking with conical pin and reinforced locking positions
The supply lines are protected in the extendable carrier and adapt to the respective loading area length
Ramps:
1 pair of two-part steel ramps, approx. 4,350 mm x 900 mm
Hydraulically folding ramp tips
Ramps can be moved individually hydraulically outwards by approx. 235 mm and inwards by approx. 215 mm
Axles and suspension:
BPW axles and suspension, two axles rigid, two axles self-steering
Electromagnetic reverse lock via reverse gear and can be activated manually
Air suspension with lifting and lowering valve
Axle tool
Tires: 235/75 R17.5 3PMSF dual tires
Load index: 143/141J (144/144F)
Brake system:
WABCO brake system, EBS-E in accordance with EU regulations
Lighting system:
24-volt lighting system in "ASPÖCK-NORDIK full LED"
Metallization:
Standard HRM metallization of the outer frame
Complete steel construction shot-peened, then the defined visible surfaces hot-finished with ZINACOR 850 (zinc 85% - aluminum 15%) metallization
Steel construction:
Steel grades:
S355J2+N/S355MC (yield strength 355MPa)
S690QL/S700MC (yield strength 690MPa)
Welder DIN-EN 287-1 tested
MAG welding process according to EN ISO 4063
Shielding gas M21 according to EN ISO 14175
Accessories included:
Steel front wall, pluggable, height approx. 400 mm
ASPÖCK-UNIBOX on the front connection strip with 24N, 24S & 15-pin sockets
Gkodpfx Ajk Ahugsaxjd
24N connection in accordance with ISO-118524S connection in accordance with ISO-373115-pin connection in accordance with ISO-12098
Round NATO socket on the front connection strip
Cable to supply the electro-hydraulic unit and/or the electric cable winch (35 mm2, 3.5 m long) between trailer and SZM with plug (NATO-NATO)
3 kW electro-hydraulic unit for controlling the hydraulic processes, with the exception of hydraulic cable winches
1 spare wheel with mounting adapter
Outer support of the gooseneck with fastening holes for screw-in lashing ringsThe first hole approx. 200 mm from the front, then approx. every 400 mm
2 pairs of screw-in lashing rings included
One fastening hole in the rear upper area of the outer beams of the gooseneck for a screw-in lashing ring
1 pair of screw-in lashing rings
Approx. 40 mm thick hardwood covering above the gooseneck
On the gooseneck 1 pair of plug-in aluminium drop sides on the side, approx. 400 mm high, anodized
One plug-in aluminium rear panel on the gooseneck, approx. 400 mm high, anodized
2" kingpin
Guide plate from the gooseneck for the saddle plate, approx. 500 mm wide
4 wheel chocks with holder
Holder for ALU docking lights
Mech. Saddle supports with 2-speed gearbox and crank
Continuous hardwood covering on the cargo bed, interrupted between the axles, approx. 50 mm thick
Locking of the cargo bed with conically welded locking profiles every 250 mm incl. pretensioning plate
Slotted holes for attachable and movable bridging elements on the front of the cargo bed
1 intermediate table with stepped loading surface, approx. 300 mm wide for the pull-out tube with large cross-section with sheet metal covering
Front and rear with Langl
Listing
Büyükkayacık OSB
10,138 km
Low loader semitrailer
GVN Trailer4 Axle Hydraulic Platform Lowbed
Call
Condition: new, Year of construction: 2025, GVN Trailer 4 Axle Exclusive Lowbed
Gkjdpfxjqxbfmj Aaxod
Please get contact with us for more informaiton;
Listing
Dortmund
7,673 km
Lowbed
FaymonvilleMAX Trailer 3-Achs-Tele-Semi-RM-ALU-Ram.
Call
Condition: new, empty load weight: 10,350 kg, maximum load weight: 39,150 kg, overall weight: 49,500 kg, axle configuration: 3 axles, loading space length: 9,300 mm, loading space width: 2,540 mm, loading space height: 860 mm, suspension: air, tire size: 235/75 R 17,5, color: grey, Equipment: ABS, Gooseneck:
-Gooseneck with rear bevel of approx. 750 mm x 10°
-3 pairs of lashing rings (LC 5,000 daN)
-Hardwood decking 30 mm thick
Loading area:
-telescopic loading area with rear slope approx. 1,000 mm x 8°
-1 pair of fixed wheel recesses in front of the axles approx. 2,850 x 970 x 400 mm
-Wheel recesses with square climbing strips 15 x 15 mm and widenings in the lower area
-A pair of fixed wheel recesses between the 1st and 2nd axles, approx. 1,610 x 970 x 400 mm
-3-piece removable galvanized covers over the wheel recesses (W 670 mm) - max. point load 5 to / pc.
-Recess in the chamfer and protruding into the loading area to accommodate the excavator dipper stick approx. 2,900 x 750 x 210/290 mm
-1 pair of lashing rings lying in the front of the loading area (LC 10,000 daN)
-5 pairs of lashing rings foldable outwards (LC 5,000 daN)
-2 pairs of lashing rings can be folded outwards (LC 10,000 daN)
-2 pairs of lashing rings in the excavator trough (LC 5,000 daN)
Cut-outs in the outer frame of the cargo bed for attaching lashing straps (LC 2,000 daN)
One-piece ALU ramps:
-One pair of one-piece ALU ramps approx. 2,500 x 600 mm
-Ramp with spring lifting mechanism and manually adjustable
-Maximum load per pair: 24,000 kg
Axles and tires:
-BPW axles and suspension, 2 axles rigid, 1 axle self-steering
-Technical axle load: 12,000 kg
-Electromagnetic reverse lock via reverse gear and can be activated manually
-Air suspension with lifting and lowering valve
-axle tool
-235/75 R 17.5 tires
-TPMS tire pressure monitoring system in accordance with ECE R 141
Accessories included:
-One spare wheel with holder in front of the bulkhead
-2" kingpin
-One galvanized steel bulkhead approx. 400 mm high
-Yellow-red air couplings on the galvanized connection strip at the front
-4 wheel chocks with holder on the bulkhead
-Mounting in the rear area of the gooseneck for ALU docking lights
-Galvanized extensions, extendable by approx. 230 mm per side
-Galvanized folding supports under the bevel of the cargo bed
-One bracket for a rotating beacon at the rear of the trailer
-White reflector tape in accordance with EU regulations on the sides, on the pull-out and red at the rear
-One bracket for the warning signs including socket on the left and right of the gooseneck and on the rear panel
Gsdpfoiu Er Aox Aaxekd
-ALU drop sides and rear wall can be plugged onto the gooseneck approx. 2,440 x 400 mm
-The rear galvanized stanchions are removable (length of the body approx. 2,560 mm)
-2 pairs of WADER container pockets in the loading area for a 20ft or 30ft container
-3 pairs of stanchion pockets for 100 x 50 mm stanchions in the outer frame of the cargo bed
-One removable galvanized intermediate table with 1 pair of WADER container pockets
-Square climbing rails 20 x 20 mm every 200 mm on the outer frame of the loading area slope
-a layer of sand painted onto the chequer plates on the gooseneck and on the loading area to prevent slipping
-Four warning signs approx. 423 x 423 mm, extendable by approx. 400 mm, with a position light
-A bracket for a rotating beacon on the warning signs
-Speed sticker 80 km/h at the rear and on both sides
-Load manometer for determining the axle loads including load diagram
-HRM metallization (High Resistance Metallization) of the outer frame
-Complete steel construction shot-blasted, then the defined visible surfaces hot-finished in metallization with ZINACOR 850 (zinc 85% - aluminium 15%)
Listing
Dortmund
7,673 km
Lowbed
FaymonvilleMAX Trailer 4-Achs-Tele-Semi mit Rampen, zwgl.
Call
Condition: new, empty load weight: 13,250 kg, maximum load weight: 47,550 kg, overall weight: 60,800 kg, axle configuration: > 3 axles, suspension: air, tire size: 245/70 r17.5, color: grey, Equipment: ABS, Gooseneck:
Gooseneck with rear bevel of approx. 750 mm x 10°.
3 pairs of lashing rings
Hardwood decking 30 mm thick
Loading platform in extendable version:
Loading area in extendable version with rear bevel of approx. 1,000 mm x 8°
5 pairs of lashing rings can be folded outwards
3 pairs of lashing rings can be folded outwards
1 pair of lashing rings lying in the front of the cargo bed
Cut-outs in the outer frame of the cargo bed for attaching lashing straps
Hardwood flooring approx. 48 mm thick, checker plate flooring over the axles
Two-part steel ramps:
A pair of galvanized two-part steel ramps approx. 2,750 + 1,400 x 800 mm with approx. 48 mm thick hardwood decking.
Ramp with hydraulically folding and unfolding ramp sections, hydraulic lifting gear and hydraulically movable. Maximum load per pair: 40,000 kg
Seat posts:
JOST fifth wheels (mechanical) with 2-speed gearbox for 24t lifting load (50t test load)
Axles and tires:
BPW axles and suspension, 1st axle rigid, all other axles hydro-mechanically forced steered
Technical axle load: 12,000 kg
Air suspension with lifting and lowering valve
Axle tool
Tires 245/70 R 17.5
Brake system:
Brake system in accordance with EU regulations with EBS-E (4S3M) without connecting lines to the tractor unit
Steel construction:
Steel construction made of high-strength fine-grained steels
Steel grades:
Gkodpfel Uxdkex Aaxed
S355J2+N/S355MC (yield strength 355MPa)
S690QL/S700MC (yield strength 690MPa)
Coating:
First-class and durable corrosion protection of the standard shot-peened welded frame guaranteed by a 2-component (2K) zinc dust primer
A high-quality 2-component (2K) top coat in a single color in nova grey
Rear section metallized and painted in RAL 9010 (pure white)
No metallic paint finish possible
Electrical system:
Electrical system in accordance with EU regulations, 24 volt lighting ASPÖCK-NORDIK (ASS3)
ASPÖCK-UNIBOX on the front connection strip with 24N, 24S & 15-pin sockets
Connection according to ISO
24N ISO-1185
24S ISO-3731
15-pin ISO-12098
Accessories included:
2" kingpin
One galvanized steel end wall approx. 400 mm high
Yellow-red air couplings on the galvanized connection strip at the front
4 restraining shoes with holder on the bulkhead
One spare wheel with holder in front of the bulkhead
Electro-hydraulic unit
Re-steering from the front and rear by means of cable remote control operated via pushbuttons with tracking control of the axles
Mounting in the rear area of the gooseneck for ALU docking lights
European reflector plates (red/yellow) at the rear of the trailer
White reflective tape in accordance with EU regulations on the side, on the extension and at the rear Red
On the gooseneck and on the ramps on the left and right, a holder for the warning signs including a socket
A bracket for a rotating beacon at the rear of the trailer
Galvanized folding supports under the sloping loading area
Operating valves for the ramps fitted on the right-hand side of the trailer
Cover plates to bridge the gap between the ramps and the cargo bed
A mud flap at the rear of the trailer
Manual and description on USB stick
BEKAMAX (Pico) central lubrication system with NLGI-2 standard grease and removable protection around the pump
ALU drop sides and rear wall can be plugged onto the gooseneck approx. 2,440 x 400 mm
The rear galvanized stanchions are removable Length of the body approx. 2,560 mm
One tool box INOX 1,350 x 400 x 400 on the gooseneck Box covered oil filler plug
4 pairs of WADER container pockets in t
Listing
Kraków
8,473 km
Low loader semitrailer
FAYMONVILLEF-S43-1ACA+D2 low bed Tief Bet semi-trai
Call
Condition: excellent (used), functionality: fully functional, empty load weight: 21,200 kg, maximum load weight: 48,800 kg, overall weight: 70,000 kg, axle configuration: > 3 axles, loading space length: 15,350 mm, loading space width: 2,740 mm, suspension: air, Year of construction: 2018, FAYMONVILLE F-S43-1ACA+D2 low bed Tief Bet semi-trailer / Load capacity 49 tons / Deck 15.5 m
year 2017/2018
the semi-trailer has a permission for the following technical conditions
weight 21,200 kg
Load capacity 48,800 kg
GMV 70,000 kg
tire size 245/70 R17.5
number of axles 3+2
Gjdpoxwawnsfx Aaxekd
SAF axles
air suspension
Dimensions
Main deck 705 cm
Extended deck 1105 cm
Length of the rear part 430 cm
Width 274 cm
Listing
Kraków
8,473 km
Low loader semitrailer
KässbohrerLB3E low-bed semi-trailer / 2025/ 4 axl
Call
Condition: new, functionality: fully functional, empty load weight: 11,170 kg, maximum load weight: 38,830 kg, overall weight: 58,000 kg, axle configuration: > 3 axles, loading space length: 13,190 mm, loading space width: 2,550 mm, loading space height: 875 mm, suspension: air, tire size: 245/70 R 17.5, wheelbase: 1,350 mm, color: red, Year of construction: 2025, BRAND-NEW Kässbohrer LB3E low-bed semi-trailer / 2025 / 4 axles
1st registration 27.03.2025
Mileage 0 km
Low-bed semi -trailer
Weight 11170 kg
Load capacity 38830 kg
Platform length 924 cm
Total length 1319 cm
Platform height 87.5 cm
Total width of the platform 255 cm
Permitted platform width 3.15 m
4 SAF axles
Lifted axle
2 rear axles steered
Drum brakes
Tire size 245/70 R 17.5
Folding ramp
Ramp length 275 cm
Special permissions based on decision No. TDT-ODS-277/25 (Transport Technical Inspection)
Air suspension
Gkedpfxexwawbo Aaxed
Permissible width of the vehicle 3.15 m
GVM 58000 kg
Permissible axle load 1-10000 kg 2 – 10000 kg 3 – 10000 kg 4 – 10000 kg
We offer 4 brand-new Kässbohrer 3-axle low trailers and 2 brand-new Kässbohrer 4-axle low trailers
Listing
Sittensen
7,681 km
Low loader semitrailer

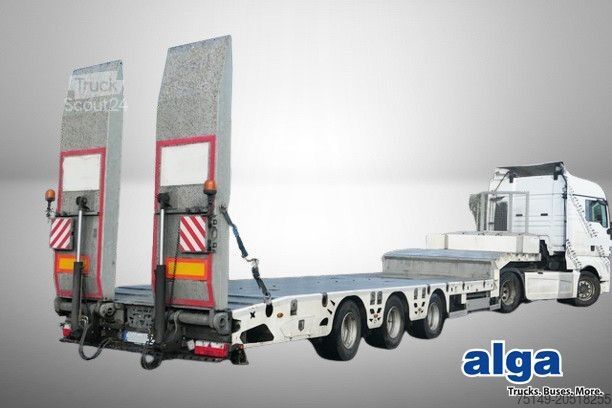

VegaVEGA, 3-Achser, Hydr. Rampen, Verzinkt, Gelenkt
Call
Condition: used, maximum load weight: 33,500 kg, overall weight: 45,000 kg, axle configuration: 3 axles, first registration: 12/2021, next inspection (TÜV): 06/2026, total width: 2,550 mm, total height: 4,000 mm, Equipment: ABS, VEGA low-loader, hydraulic ramps, extendable, galvanized chassis, air suspension, hydraulic loading ramps, ABS, TRAX axle(s), 2nd and 3rd axle(s) steered, 3rd axle lift axle, landing legs, vehicle may be wrapped in advertising and/or labeled.
Our offers generally do not include a new TÜV inspection. If a new TÜV inspection is required, we are happy to provide an offer from our partner workshops! Vehicle may be wrapped in advertising and/or labeled. Our general delivery and payment conditions apply.
We are happy to provide you with a financing or leasing offer for this unit.
Please contact us!
Gkodpfx Asxwgntsaxod
Listing
Lemgo-Lieme
7,723 km
Low loader semitrailer
PAVIC2-Achs Forstmaschinen Tieflader Typ: STLT2Z
Call
Condition: new, overall weight: 42,000 kg, axle configuration: 2 axles, Equipment: ABS, Internal reference number for inquiries: PAVIC 2-axle forestry machine low loader Type: STLT2Z for harvester transport ---- In pre-order! Color freely selectable!!!!
----Fifth wheel load: 18,000 kg
Axle load: 24,000 kg (technical)
Gross weight: 42,000 kg (technical)
Unladen weight: 9,300 kg
Made in Germany!!!!
Chassis as a welded steel construction made from high-quality fine-grain steels
Lashing rings 130 kN, 5 per side
Additional lashing rings, 3 pairs on the raised platform
Removable stanchion system made from galvanized steel with aluminum drop sides (silver anodized)
Steel front wall approx. 400 mm high
Foldable aluminum loading ramps with mechanical safety interlock
Central lubrication system SKF with reservoir (brake light controlled), approx. 20 lubrication points
Dimensions:
Total length: 16,000 mm
Bed length including rear section: 11,364 mm
Coupling height: 1,330 mm
Ground clearance at driving level: 184 mm
Fifth wheel lead distance: 600 mm
R1 dimension (from king pin to front): 410 mm (swing clearance radius)
R2 dimension (from king pin to frame): 2,150 mm (swing clearance radius)
Further dimensions available upon request (technical drawing)
Gkedpfxoxvz Sks Aaxsd
Axles:
2 x 12,000 kg (technical) Gigant axles with drum brakes, equipped with 8 x 245/70 R17.5" branded tires on Alcoa Dura Bright wheels
Suspension:
Pneumatic suspension with lift and lower function
Second driving height + approx. 50 mm can be activated from the cab. At 20 km/h driving speed, the vehicle automatically lowers again.
Incl. axle load manometer
Coupling device:
2" kingpin (interchangeable, single position)
WITHOUT support legs! -> Customers use a large timber beam placed under the front frame here.
Brake system:
Wabco EBS with axle load measuring system (smartboard) incl. odometer
Parking brake: spring-loaded
Lighting system:
Taillights: 2 pairs (3-chamber lights)
Side marker lights: LED
Outline marker lights: LED
Front and rear position lights: LED
Reversing and auxiliary lights, each as round lights
License plate light: LED
1 removable beacon, switchable from the cab via dedicated switch
4 LED work lights
4 oversize warning markers, double secured (wing nut and pin), with red/white LED illumination
Steering:
Tridec HF-E (hydraulic displacement steering on both axles) including automatic alignment and straight-line positioning.
Tridec remote control (wireless remote control), also usable in wired mode
Paintwork:
Complete steel structure, shot-blasted after welding and primed with special adhesion primer. Final two-component paint finish in RAL color of your choice.
Axles and wheel hubs in black, or painted in RAL color for an additional charge
Other attachment parts are galvanized and/or painted/powder-coated, or made from aluminum (with or without anodizing)
Approval:
Including §13 inspection certificate
Including §70 exemption certificate (Customer must provide a suitable and approved 3-axle tractor unit), includes, among other things, a swept path test at TÜV Nord in Meppen.
Financing, as well as leasing or hire purchase, is possible.
For further questions, our sales team is happy to assist you.
This is a non-binding offer. Subject to prior sale, errors, and changes.
Listing
Schwebheim
7,935 km
Low loader semitrailer
MösleinSTO 3 Schwebheim 3 Achs Satteltieflader Plato 45 t GGfür Fertigteile, Baumaschinen oder Container
Call
Condition: used, empty load weight: 7,300 kg, maximum load weight: 37,700 kg, overall weight: 45,000 kg, axle configuration: 3 axles, first registration: 03/2019, suspension: air, tire size: 235/75R17,5 --/140J, color: other, gearing type: other, front tire size: 235/75R17,5 --/140J, rear tire size: 235/75R17,5 --/140J, driver cabin: other, emission class: none, Equipment: ABS, compressed air brake, Reinforced design, length of high bed approx. 4,180 mm, length of low bed approx. 9,400 mm, loading height approx. 900 mm, 12 x stake pockets in the outer frame, 3 x cross stake strips, 14 x lashing eyes, 4 pairs of container locks for, 2 x 20 ft. ISO containers or 1 x 40 ft ISO container, , -- Misprints, errors and changes reserved, sample images --, More data at: !, More Details: !
Gkedoxv Sp Tepfx Aaxjd
Listing
Hörsching
8,282 km
Low loader semitrailer

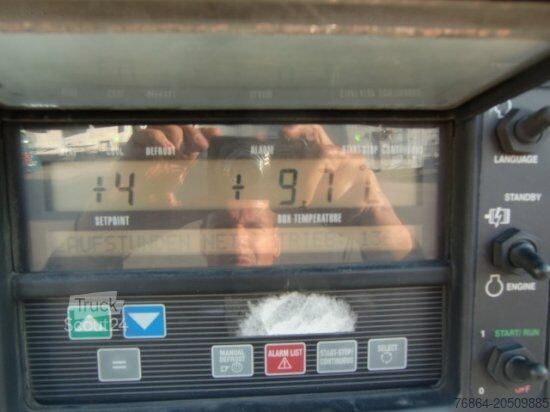

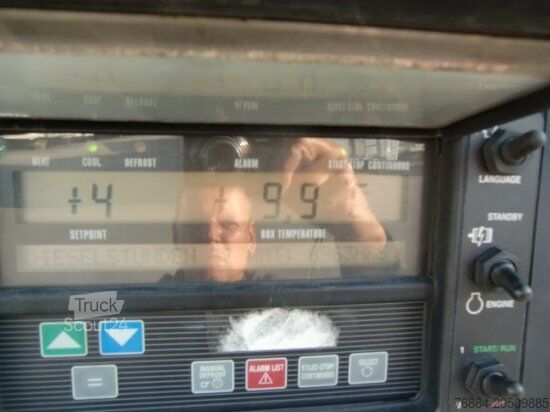

SCHMITZSKO 24 KüHLAUFLIEGER, CARRIER VECTOR 1550 LIFTACHSE
Call
Condition: used, empty load weight: 8,195 kg, maximum load weight: 24,805 kg, overall weight: 33,000 kg, axle configuration: 3 axles, first registration: 07/2012, loading space height: 265 mm, total length: 2,450 mm, total width: 4,000 mm, suspension: air, tire size: 385/65 R22,5, Equipment: ABS, | Schmitz deep-freeze trailer | lift axle | Schmitz axles with disc brakes | toolbox | spare wheel holder | Carrier Vector 1550 refrigeration unit | tires: 385/65 R22.5 | diesel hours 6963 | Subject to errors, input errors and prior sale.
Godpfjxv Sg Sex Aaxokd
Listing
Sittensen
7,681 km
Low loader semitrailer
SCHEUERLESPE 8554, Cargo Master, 85to. NL, gelenkt, 18m
Call
Condition: used, maximum load weight: 85,000 kg, overall weight: 105,000 kg, axle configuration: > 3 axles, first registration: 06/1999, loading space length: 18,000 mm, loading space width: 3,500 mm, total width: 3,500 mm, Cargo Master CM 90, designed for in-plant operations, e.g. industrial sites, ports, and steep ship ramps. Features include single wheel suspension, hydraulic lift, extreme steering angle, high maneuverability, lowered loading height approx. 670 mm, raised loading height approx. 1,150 mm, payload: approx. 85,000 kg. Vehicle may have advertising decals and/or lettering.
Gedpfx Aajxvwb Uoxokd
Our offer generally does not include a new TÜV certification. If you require a new TÜV inspection, we are happy to provide a quotation from our partner workshops. Vehicle may come with advertising stickers and/or lettering. Our general terms and conditions of delivery and payment apply.
We are happy to provide a financing or leasing offer for this equipment.
Please contact us!
Listing
Schwebheim
7,935 km
Low loader semitrailer
LANGENDORFSATBUE 30/38 3 Achs Tiefbett- Satteltieflader
Call
Condition: used, empty load weight: 11,700 kg, maximum load weight: 38,300 kg, overall weight: 50,000 kg, axle configuration: 3 axles, first registration: 08/2005, suspension: air, tire size: 235/75R17,5 ---/140J, color: other, gearing type: other, front tire size: 235/75R17,5 ---/140J, rear tire size: 235/75R17,5 ---/140J, driver cabin: other, emission class: none, Equipment: ABS, compressed air brake, , -- Misprints, errors and omissions excepted, sample pictures --, More details under: !, More Details: !
Gkjdoxv Spgjpfx Aaxjd
Trust Seal
Dealers certified through TruckScout24

Listing
Hörsching
8,282 km
Low loader semitrailer
SCHMITZSCB S3B KüHLAUFLIEGER, TK SLXI 300
Call
Condition: used, empty load weight: 8,434 kg, overall weight: 39,000 kg, axle configuration: 3 axles, first registration: 04/2022, suspension: air, tire size: 385/65 R22.5, Equipment: ABS, | Schmitz refrigerated semi-trailer SCB S3B | TK SLXi 300 refrigeration unit | Pallet box | Internal width: 2.45 m | Internal height: 2.64 m | Schmitz axles with disc brakes | Spare wheel holder, toolbox | Diesel hours: 4,925 h | Subject to errors, input mistakes, and prior sale
Gkjdpfx Aajxv Etfoxsd
Listing
Sittensen
7,681 km
Low loader semitrailer
MÜLLER-MITTELTALTTS-VLL 30,0 Profi, Gelenkt, hydr. Rampen, BPW
Call
Condition: used, maximum load weight: 29,300 kg, overall weight: 42,000 kg, axle configuration: 3 axles, first registration: 02/2017, next inspection (TÜV): 09/2026, loading space length: 14,910 mm, loading space width: 2,520 mm, total width: 2,550 mm, total height: 3,700 mm, Equipment: ABS, Low-bed trailer, loading area length 5500 mm, extendable to 3000 mm wide, foldable widening panels, loading height approx. 630 mm, gooseneck dimensions (LxW) 3510x2485 mm, 400 mm high aluminum side walls, height difference between gooseneck and bed 845 mm, raised bed 4220 mm, rear slope 870 mm, front slope 880 mm, hydraulically operated, laterally adjustable loading ramps (LxW) 2800x800 mm, electro-hydraulic unit for hydraulic functions, NATO external jump-start socket, 8 heavy-duty lashing rings per side, 3 lashing brackets per side, rotating beacon, support winches, folding rear supports, extendable warning panels, ABS, EBS, BPW Eco axles, axles with hydraulic forced steering, drum brake system, air suspension with raising/lowering device. Vehicle may be decorated and/or labeled with advertising.
Gkjdpfxsxvwb Ij Aaxsd
Our offer is generally without a new TÜV inspection. If a new TÜV inspection is required, we will gladly provide you with an offer from our partner workshops! Vehicle may be decorated and/or labeled with advertising. Our general terms and conditions of delivery and payment apply.
We are happy to provide you with a financing or leasing offer for this item. Please contact us!
Listing
Schwebheim
7,935 km
Low loader semitrailer
MösleinST 3 Plato 8,7 3 Achs Satteltieflader Plato 45 t GGfür Fertigteile, Baumaschinen
Call
Condition: new, empty load weight: 7,950 kg, maximum load weight: 37,050 kg, overall weight: 45,000 kg, axle configuration: 3 axles, suspension: air, tire size: 235 / 75 R 17,5, color: other, gearing type: other, front tire size: 235 / 75 R 17,5, rear tire size: 235 / 75 R 17,5, driver cabin: other, emission class: none, fuel: biodiesel, Equipment: ABS, compressed air brake, Reinforced design, air-sprung with lift axle, axle load gauge for axle load, length high bed approx. 4,140 mm, length low bed approx. 8,600 mm, loading height approx. 900 mm, for 2-axle and 3-axle tractor unit, front wall approx. 1,600 mm high, 18 x stake pockets in outer frame, 3 x cross stake rails, 24 x lashing eyes, 4 pairs of container locks for, 2 x 20 ft. ISO container or 1 x 40 ft ISO container, , Surcharge for aluminum ramps, Price: 1,900 ¤, , Spare wheel, Price: 300 ¤, , -- Misprints, errors and changes excepted, Sample pictures --, More data under: !, More Details: !
Gedpfx Aaoxv Sp Hexekd
Listing
Schwebheim
7,935 km
Low loader semitrailer
MösleinSTO 3 Schwebheim 3 Achs Satteltieflader Plato 45 t GGfür Fertigteile, Baumaschinen oder Container
Call
Condition: used, empty load weight: 7,300 kg, maximum load weight: 37,700 kg, overall weight: 45,000 kg, axle configuration: 3 axles, first registration: 03/2019, suspension: air, tire size: 235/75R17,5 --/140J, color: other, gearing type: other, front tire size: 235/75R17,5 --/140J, rear tire size: 235/75R17,5 --/140J, driver cabin: other, emission class: none, Equipment: ABS, compressed air brake, Reinforced design, length of high bed approx. 4,180 mm, length of low bed approx. 9,400 mm, loading height approx. 900 mm, 12 x stake pockets in the outer frame, 3 x cross stake strips, 14 x lashing eyes, 4 pairs of container locks for, 2 x 20 ft. ISO containers or 1 x 40 ft ISO container, , -- Misprints, errors and changes reserved, sample images --, More data at: !, More Details: !
Godpfoxuprpex Aaxekd
We make it easier for you to find: "lowbed semitrailers"
You will receive new offers immediately and free of charge via e-mail
You can easily terminate the search request at any time
Used Lowbed Semitrailers (448)
Now search TruckScout24 completely with more than 120,000 used vehicles.Browse the most popular categories:
- Blumhardt Lowbed Semitrailers
- Broshuis Lowbed Semitrailers
- Fliegl Lowbed Semitrailers
- Fruehauf Lowbed Semitrailers
- Goldhofer Lowbed Semitrailers
- Hangler Lowbed Semitrailers
- Hrd Lowbed Semitrailers
- Humbaur Lowbed Semitrailers
- Kaiser Lowbed Semitrailers
This may be of interest to you
