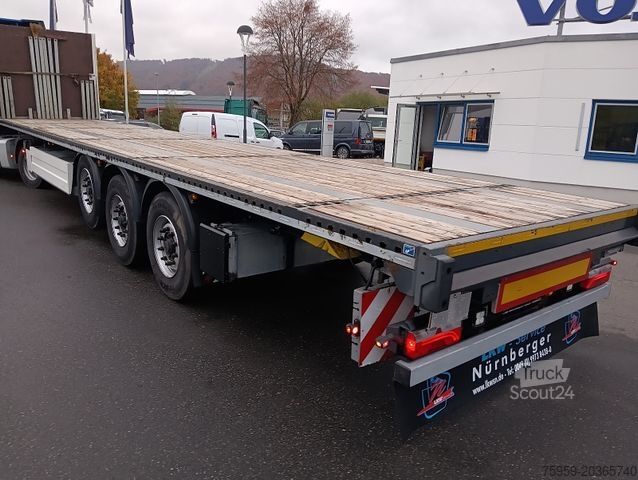

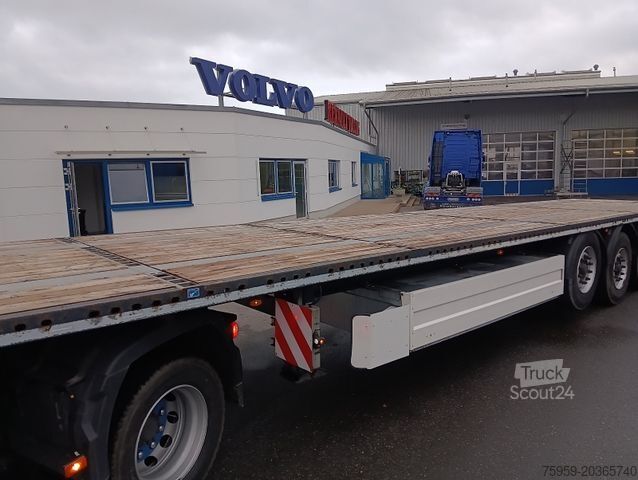

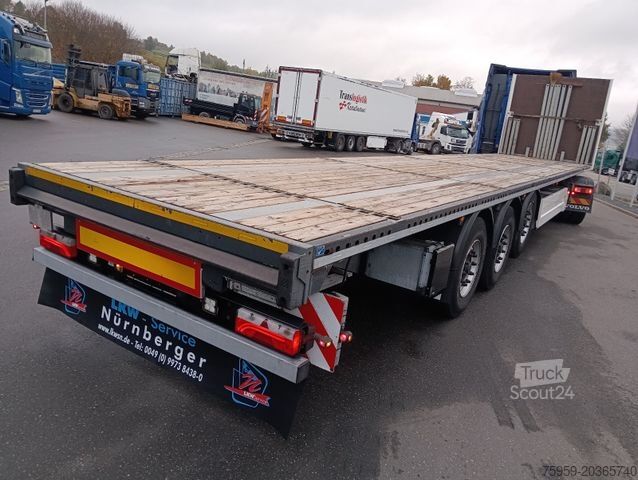

SCHWARZMÜLLER 3-AXLE BUILDING MATERIAL PLATEAU SEMI-TRAILER RH125
REINFORCED CHASSIS 20 tonnes/4 m!!!
FIRST REGISTRATION!!
German trailer, 1st hand, TOP CONDITION
Inner length approx. 13,620 mm
Inner width approx. 2,480 mm
Lodpfx Aaexquqpe Teru
Loading height at the front approx. 1,240 mm
Loading height at the rear approx. 1,210 mm
Welded steel frame construction
Reinforced for a load of 20 t at the center of gravity on a 4 m loading length
Frame construction height at the front approx. 140 mm
Longitudinal beams in the area of the bend reinforced with a beam
(can be uncoupled when loaded)
Fifth wheel height 1090-1190 mm
Reinforced hole outer frame 5 mm with hole spacing 100 mm,
long hole 40/25 mm and an additional 12 pairs of 4 t lashing rings, recessed in the outer frame profile
SCHWARZMÜLLER stake load securing system "RuLasi"
6 plug-in housing cross beams for shaped tube stakes 80x80 mm,
across the entire width (except for longitudinal beams) for center bars for belt attachment,
division from front wall: 500/2550/4430/7200/9830/12870mm
Empty holder for shaped tube stanchions 80x80 mm,
directly inside the front wall, across the entire width (except for
longitudinal beams), hot-dip galvanized, for 15 stanchions
6 pieces of steel shaped tube limit stanchions 80x80x5 mm, usable height approx. 2000 mm,
top with lashing holes for tensioning belt, hot-dip galvanized, stanchion securing with
pressure actuation
6 pieces of steel shaped tube limit stanchions 80x80x5 mm, usable height approx. 1000 mm,
top with lashing holes for tensioning belt, hot-dip galvanized, stanchion securing with
pressure actuation
Mechanical steel support winches, 2 x 12 t with thrust compensation
BPW EcoDisc axles with disc brakes ø430 mm (22.5" disc),
Load capacity 9 t/axle, on-road version
Axle spacing 1,310 + 1,310 mm
Wheelbase 7,620 mm
Axle lift on 1st axle, raises and lowers automatically depending on weight,

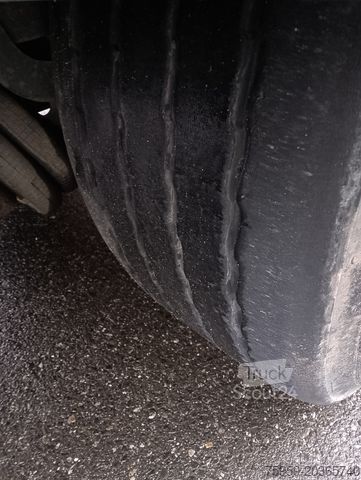

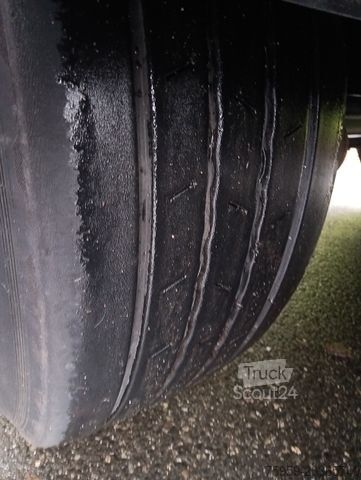

6x tires 385/65 R 22.5, 160K, MICHELIN X Multi T
Steel rims 11.75 x 22.5, offset 120 mm, silver
Plastic wheel nut protection caps
Brake system in accordance with EC directive 71/320 ECE R13
Two-line compressed air brake system
Brake system made by Wabco
EBS system 2S2M, one axle sensed
RSS - Stability program

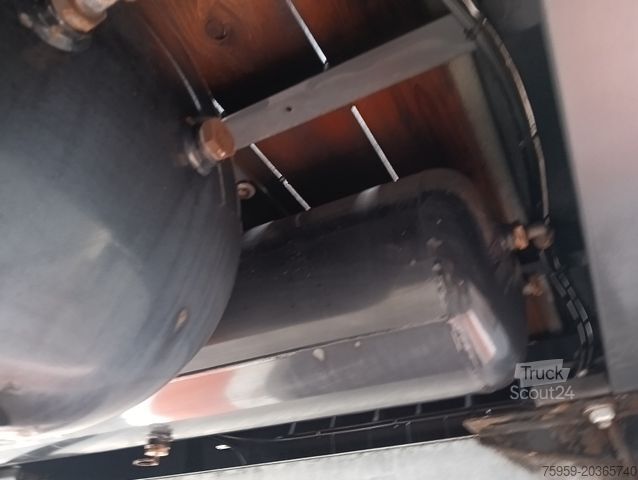

Steel air tank
Brake/air connections with 2 individual coupling heads yellow/red
Air suspension with lifting and lowering device, total stroke approx. 200 mm
Automatic adjustment to programmed driving level from 15 km/h
Axle load display via EBS CAN bus signal for display on display in the driver's cab
Larch wood floor 40 mm laid lengthways, impregnated on both sides
with steel top-hat rails above the longitudinal beams and screen-printed underlay,
Floor load capacity 7000 kg forklift axle load
Aluminum hollow profile front wall approx. 2400 mm high
Inside front wall with 2 lashing rings for load securing
Front wall reinforced with 4 center supports up to the top
Inside front wall protection 9mm screen-printed plate
Bracket for squared timbers (2 L-angles for stacking 10x 100x100mm squared timbers 2300mm wide)
Steel corner pillars at the front, screwed on
24-volt lighting system in accordance with EC Directive 76/756/EEC
Partial LED five-chamber tail lights "Europoint III"
8x LED side marker lights
2 additional LED reversing lights
Steel granulate cleaning, 2-layer zinc phosphate primer,
Chassis = RAL 7021 black-grey
Outer frame + end plates = RAL 7021 black-grey
Corner pillars + front wall + pallet box lid = RAL 9010 pure white
Contour marking strips in accordance
