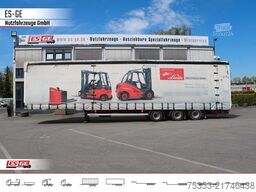

Open semitrailer with tarpDINKEL
3-Achs-Sattelanhänger, Pritsche+Plane, LBW
Open semitrailer with tarp
DINKEL
3-Achs-Sattelanhänger, Pritsche+Plane, LBW
Condition
Used
Location
Essen

Basic data
Price & Location
- Seller location:
- Heegstraße 6-8, 45356 Essen, Germany

Call
Technical details
- Maximum load weight:
- 31,710 kg
- Overall weight:
- 42,000 kg
- Axle configuration:
- 3 axles
- First registration:
- 10/2016
- Total width:
- 2,550 mm
- Equipment:
- ABS
Details about the offer
- Listing ID:
- A217-46-438
- Reference number:
- 37809
- Update:
- 01.05.2026
Description
You can find our entire range of vehicles, including immediately and short-term available units, on our website.
Excerpt from the equipment features. Complete specification available on request.
- Wedge-shaped chassis with increased point load capacity, approx. 25,000 kg over approx. 5,000 mm
- 24,000 kg telescopic support winches with load and fast operation modes
- Lashing positions available in 5,000 kg, 6,000 kg, and 10,000 kg configurations
- 8 stake pocket inserts (for 2nd bulkhead)
- Aluminum roof girders with sliding tarpaulin
- Rear stakes extendable to approx. 3,500 mm (for loading and unloading only)
- Three sliding stanchions on each side
- End stanchions extendable lengthwise in direction of travel
- Complete front wall designed as storage compartment with integrated shelving system, interior closed
- DINKEL mechanical lifting roof, height-adjustable, lifting roof height 400 mm, operable from both sides or one side only
- Additional height adjustment of 480 mm in 40 mm increments (12 x 40 mm) via stanchion height setting
- Trailer can be driven under tarpaulin up to total height of approx. 4,400 mm (rear open over tail lift)
- Upper rear portal crossbar with movable sliding tarpaulin
- Four rows of stackable 150 mm aluminum slats on each side (two rows in upper bunk only), 450 mm pockets at bottom, four rows of pockets above, evenly spaced intervals
- WABCO compressed air brake system with EBS to EC Standard 71/320 EEC incl. PREV
- ECAS air suspension with raise/lower function
- Wabco Smart Board with axle load display and hubodometer
- 3 x 10,000 kg SAF axles with drum brakes
- 3rd axle: friction-steered trailing axle
- 1st axle liftable
- Tires: 235/75 R 17.5
Lasdpfx Aley Dy Ehsdsc
- Dhollandia heavy-duty tail lift, type DHLSU, load capacity 9,000 kg, load center 1,000 mm, steel platform approx. 3,000 x 2,500 mm
- Hydraulic auxiliary stabilizers with automatic ground leveling
- Tail lift with ramp function for inclined platform setup, usable as loading ramp – loadable up to max. 13,500 kg
- Chassis painted in MB nova grey
- White bodywork with customer-specific tarpaulin lettering
The listing was translated automatically. Translation errors are possible.
Excerpt from the equipment features. Complete specification available on request.
- Wedge-shaped chassis with increased point load capacity, approx. 25,000 kg over approx. 5,000 mm
- 24,000 kg telescopic support winches with load and fast operation modes
- Lashing positions available in 5,000 kg, 6,000 kg, and 10,000 kg configurations
- 8 stake pocket inserts (for 2nd bulkhead)
- Aluminum roof girders with sliding tarpaulin
- Rear stakes extendable to approx. 3,500 mm (for loading and unloading only)
- Three sliding stanchions on each side
- End stanchions extendable lengthwise in direction of travel
- Complete front wall designed as storage compartment with integrated shelving system, interior closed
- DINKEL mechanical lifting roof, height-adjustable, lifting roof height 400 mm, operable from both sides or one side only
- Additional height adjustment of 480 mm in 40 mm increments (12 x 40 mm) via stanchion height setting
- Trailer can be driven under tarpaulin up to total height of approx. 4,400 mm (rear open over tail lift)
- Upper rear portal crossbar with movable sliding tarpaulin
- Four rows of stackable 150 mm aluminum slats on each side (two rows in upper bunk only), 450 mm pockets at bottom, four rows of pockets above, evenly spaced intervals
- WABCO compressed air brake system with EBS to EC Standard 71/320 EEC incl. PREV
- ECAS air suspension with raise/lower function
- Wabco Smart Board with axle load display and hubodometer
- 3 x 10,000 kg SAF axles with drum brakes
- 3rd axle: friction-steered trailing axle
- 1st axle liftable
- Tires: 235/75 R 17.5
Lasdpfx Aley Dy Ehsdsc
- Dhollandia heavy-duty tail lift, type DHLSU, load capacity 9,000 kg, load center 1,000 mm, steel platform approx. 3,000 x 2,500 mm
- Hydraulic auxiliary stabilizers with automatic ground leveling
- Tail lift with ramp function for inclined platform setup, usable as loading ramp – loadable up to max. 13,500 kg
- Chassis painted in MB nova grey
- White bodywork with customer-specific tarpaulin lettering
The listing was translated automatically. Translation errors are possible.
