Crane truck

MAN TGS 35.520 TGS 35.520 8x2 HIAB X-HiPro858E-8 & ...

= Additional Options and Accessories =

- Aluminum fuel tank
- Heated mirrors
- Bluetooth
- Differential lock
- High beam headlights
- Low noise
- Speed limiter
- Intarder
- Air conditioning
- Refrigerator
- Air suspension
- Air-suspended seats
- Air horn
- Reversing camera
- Sliding roof
- Sun visor
- Auxiliary/parking heater
- Toolbox

= Remarks =

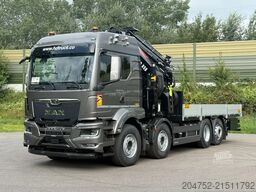

Crane truck TGS 35.520 8x2 BL CH Euro 6e

Crane HIAB X-HiPro858E-8 & Jib150x-6

Engine MAN D2676 LF78 (520 hp), 2,600 Nm torque, Euro 6e
Transmission MAN TipMatic 12.28 OD - MAN TipMatic Efficiency, rated up to 70,000 kg
High-performance engine brake MAN PriTarder with MAN EVBec, adjustable
400 l fuel tank capacity, right side - 35 l AdBlue tank capacity, right side
Gross combined weight TECHN 61,000 kg
Front axle tyres optionally 385/65R22.5 steering S+G TL (160 K)
Rear axle tyres optionally 315/80R22.5 drive S+G TL (154/150 K)
Sun visor, front windshield
LED front headlights - LED daytime running lights - LED fog lights - LED beacon lights
Multifunction steering wheel
Professional 12.3-inch instrument cluster - MAN Media System Navigation Professional 12.3-inch
MAN Sound System
Trailer coupling on the rear crossmember, RINGFEDER Type 4040/G150A
Air conditioning, Climatronic
Auxiliary water heater, 4 kW
Cruise control (FGR speed regulation)

Crane HIAB X-HiPro858E-8 & Jib150x-6

ADV – Vertical boom damping
3-point suspension
Warning lamp on stabilizer cylinders
HIPRO – The intelligent workhorse
The E-joint system consists of a lever connection (knee joint) between the crane column and lifting arm and between lifting and knuckle booms.
The X-function of the boom: Thanks to the X-function of the knuckle boom, the operator can overextend the crane horizontally by approximately 10%.
Flexible cylinder position: The hydraulic cylinders can be mounted either on top or on the side on most HIAB cranes.
Guaranteed cylinder sequencing
Original Rotzler cable winch type TC2L HD
Comfortable set-down with vibration damper
PFD – The "one oil for all" system
Remote control XSDrive joystick323
8 remote control functions at the crane control valve using XSDrive
ADO – Oil-saving mode

HIAB X-HiPro858E-8 (8x hydraulic extension)

3.50m = 18,000 kg
4.50m = 15,500 kg
6.00m = 11,300 kg
8.00m = 8,500 kg
9.50m = 6,700 kg
11.50m = 5,300 kg
14.00m = 4,400 kg
16.00m = 3,750 kg
17.50m = 3,250 kg
19.50m = 2,900 kg

Jib150x-6 (6x hydraulic extension)

24.20m = 1,120 kg
25.50m = 1,020 kg
26.80m = 950 kg
28.20m = 890 kg
29.70m = 830 kg
Pgjdpsyutxuefx Acwji
31.40m = 780 kg
33.10m = 730 kg

Flatbed body by HD Truck Solutions

6560 x 2480 x 200 mm
Toolbox
Split sideboards per side
2 pairs of LAXO container locks, extendable to 3 m
4 warning panels with lighting, extendable to 3 m

= Further Information =

Year of manufacture: 2025
Front axle 1: Steered
Front axle 2: Steered
Rear axle 1: Differential lock
Rear axle 2: Steered
Gross vehicle weight rating: 36,999 kg
Body manufacturer: Hiab X-HiPro858E-8 & Jib150x-6
CE marked: Yes
