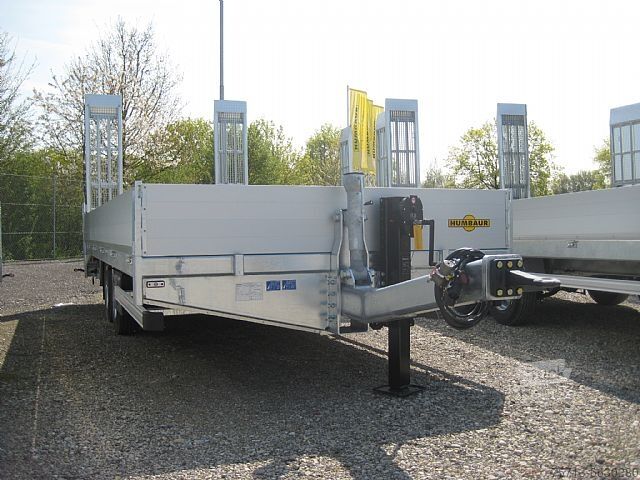

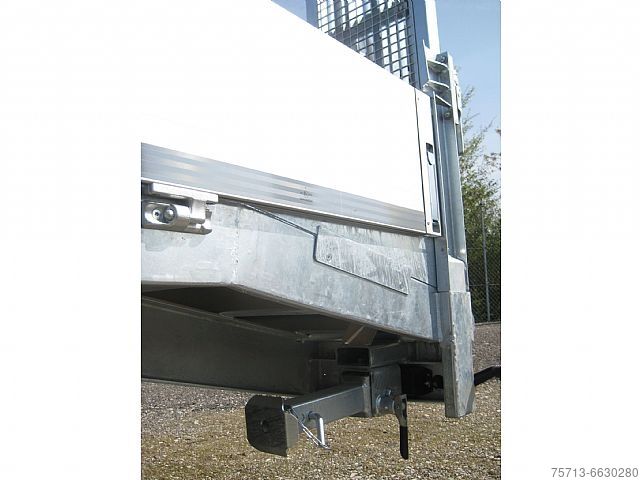

Lowbed construction machineryHumbaur
HBTZ 136224 BS abgeschrägt
Lowbed construction machinery
Humbaur
HBTZ 136224 BS abgeschrägt
Fixed price plus VAT
€25,190
(€29,976 gross)
Year of construction
2024
Condition
New
Location
Nürnberg

Show images
Show map
Basic data
- Description:
- Lowbed construction machinery
- Manufacturer:
- Humbaur
- Year of construction:
- 2024
- Condition:
- new
Price & Location
Fixed price plus VAT
€25,190
(€29,976 gross)
- Location:
- Raudtenerstr 4, 90475 Nürnberg, Deutschland

Call
Technical details
- Empty load weight:
- 3,600 kg
- Maximum load weight:
- 10,000 kg
- Overall weight:
- 13,600 kg
- Axle configuration:
- 2 axles
- Loading space length:
- 6,250 mm
- Loading space width:
- 2,450 mm
- Loading space height:
- 400 mm
- Suspension:
- steel
- Tire size:
- 235/75 r17,5 zoll
- Wheelbase:
- 990 mm
- Equipment:
- ABS
Details about the offer
- Listing ID:
- A663-02-80
- Reference number:
- 18650304
- Update:
- 01.10.2024
Description
HUMBAUR construction machinery transporter tandem overloader
LOADING AREA SLOPING AT THE REAR
HBT 116224BS / Hot-dip galvanized / Aluminium drop sides
Hot-dip galvanized chassis frame
Anodized aluminium drop sides
Equipment:
-Tandem low loader (construction machinery material transporter)
-Sloping loading area at the rear
-Permissible total weight 11,900 kg
-Payload approx. 9,010 kg
-Loading area approx. 6200 x 2460 mm
-bridge floor made of approx. 40 mm softwood planks
-Aluminium drop sides 400 mm high, anodized
-Reinforced 25 t geared support winch with load and fast gear
Godpfx Ajhmm Rksaxebw
-Fixed drawbar
-Coupling height approx. 750 - 1000 mm
-3 pairs of recessed 3 t lashing rings (3000 daN)
-6 pairs of recessed 1 t lashing points (1000 daN) in the outer frame
-2 telescopic folding supports at the rear of the vehicle
-ABS 2-circuit air brake system
1-part drive-on ramps, hot-dip galvanized, approx. 2400 mm long and approx. 520 mm wide, with galvanized STEEL GRID COVERING
-mudguards
-Anti-spray system
-Ø 40 mm DIN towing eye
-Aluminum side collision protection
Drive-on angle only approx. 16°
-Loading height unloaded only approx. 920 mm
Optionally available for an extra charge:
-Plastic tool box under the loading area
-Additional price: 290,- Euro plus VAT
=> Freight costs for delivery: 2.90 euros plus VAT per km
=> Prices are from D-86368 - Gersthofen
Your direct contact:
Mr. Hirn Tel.
DOLL FAHRZEUGBAU
*Subject to prior sale and changes!
*Price valid from D-86368 - Gersthofen*
*Sales only to commercial customers!
*Pictures may vary and are for rough orientation only => may include/show accessories at extra cost*
The listing was translated automatically. Translation errors are possible.
LOADING AREA SLOPING AT THE REAR
HBT 116224BS / Hot-dip galvanized / Aluminium drop sides
Hot-dip galvanized chassis frame
Anodized aluminium drop sides
Equipment:
-Tandem low loader (construction machinery material transporter)
-Sloping loading area at the rear
-Permissible total weight 11,900 kg
-Payload approx. 9,010 kg
-Loading area approx. 6200 x 2460 mm
-bridge floor made of approx. 40 mm softwood planks
-Aluminium drop sides 400 mm high, anodized
-Reinforced 25 t geared support winch with load and fast gear
Godpfx Ajhmm Rksaxebw
-Fixed drawbar
-Coupling height approx. 750 - 1000 mm
-3 pairs of recessed 3 t lashing rings (3000 daN)
-6 pairs of recessed 1 t lashing points (1000 daN) in the outer frame
-2 telescopic folding supports at the rear of the vehicle
-ABS 2-circuit air brake system
1-part drive-on ramps, hot-dip galvanized, approx. 2400 mm long and approx. 520 mm wide, with galvanized STEEL GRID COVERING
-mudguards
-Anti-spray system
-Ø 40 mm DIN towing eye
-Aluminum side collision protection
Drive-on angle only approx. 16°
-Loading height unloaded only approx. 920 mm
Optionally available for an extra charge:
-Plastic tool box under the loading area
-Additional price: 290,- Euro plus VAT
=> Freight costs for delivery: 2.90 euros plus VAT per km
=> Prices are from D-86368 - Gersthofen
Your direct contact:
Mr. Hirn Tel.
DOLL FAHRZEUGBAU
*Subject to prior sale and changes!
*Price valid from D-86368 - Gersthofen*
*Sales only to commercial customers!
*Pictures may vary and are for rough orientation only => may include/show accessories at extra cost*
The listing was translated automatically. Translation errors are possible.
