Telehandler

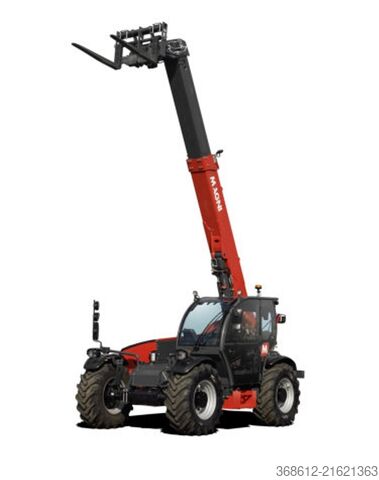

Magni THA 4,5.8

Condition: used, Year of construction: 2025, operating hours: 125 h, load capacity: 4,200 kg, lifting height: 7,000 mm, fuel type: diesel, power: 110 kW (149.56 HP), Equipment: cabin, ref: 6543 Overall height: 2.49m Overall width (over tyres): 2.34m Internal width of the cab: 0.97m Front track: 1.81m Wheelbase: 2.75m Overall length over front tyres: 4.38m Overall length over carriage: 4.99m Ground clearance: 0.37m Distance from the centre of the front wheel to the carriage: 1.23m Distance from the centre of the rear wheel to the rear of the chassis: 1.01m Turning radius over tyres: 3.7m Apron digging angle (bucket in transport position): 42.6° Apron dump angle (bucket at maximum height): 37.5° Transmission: 150 hp / 112 kW Automatic reversible fan Electrical disconnection 2/4 drive roads Limited slip differential on the front axle Hydraulic regeneration system for lowering Boom end damping for lifting Rapid decompression of the auxiliary line, internal and external Proportional control of the equipment Automatic SRS active suspension system Single circuit double-acting front auxiliary line Single circuit double-acting rear auxiliary line Joystick mounted on the seat armrest Manual air conditioning Heated rear window LED working lights, 2 on the front of the cab, 2 on the rear of the cab, 2 on the boom, hitch lighting and interior lighting Optional 360° LED working lights: 2 additional on the front cab and 2 on the rear chassis Dual-line hydraulic trailer brakes* with 7-pin electrical socket and EBS socket Towing hook Boom protection kit Centralised rear grease points Michelin XMCL 500/70R24 agricultural traction Servo monolever with 1 aux Series III cab KAB pneumatic seat with armrest-mounted joystick Qfit apron Stage V series III French manual Magnetic support rotating beacon Hfjdpfx Aajka Uxdoisg Engine oil change kit Predisposition for pneumatic braking Protection under the transmission Hydraulic lock

Condition: used, Year of construction: 2023, operating hours: 1,350 h, load capacity: 4,200 kg, lifting height: 7,000 mm, fuel type: diesel, power: 96 kW (130.52 HP), Equipment: cabin, ref: 6593 Overall height: 2.49m Overall width (over tyres): 2.34m Internal width of the cab: 0.97m Front track: 1.81m Wheelbase: 2.75m Overall length over front tyres: 4.38m Overall length over carriage: 4.99m Ground clearance: 0.37m Distance from the centre of the front wheel to the carriage: 1.23m Distance from the centre of the rear wheel to the rear of the chassis: 1.01m Turning radius over tyres: 3.7m Crush angle of the carriage (bucket in transport position): 42.6° Dump angle of the carriage (bucket at maximum height): 37.5° Transmission: 130hp Automatic reversible fan Electrical disconnection 2/4 drive roads Limited slip differential on the front axle Hydraulic regeneration system for lowering End of boom damping for lifting Quick decompression of the auxiliary line, internal and external Proportional control of the equipment Automatic SRS active suspension system Single circuit double acting front auxiliary line Single circuit double acting rear auxiliary line Joystick mounted on the seat armrest Manual air conditioning Heated rear window Halogen working lights, 2 on front cab, 2 on rear cab, 2 on boom Dual line hydraulic trailer brakes* with 7-pin electrical socket and EBS socket Towing hook. Michelin XMCL 460/70R24 agricultural traction Servo monolever 1 aux Series III cab KAB pneumatic seat Qfit apron French manual stage V series III Front axle with limited slip differential Hfedpeka Uyxjfx Aaisg Pneumatic brake predisposition Hydraulic lock 1 aux for Qfit apron Air conditioning for halogen lights ----- Power: 130CV DIN Tire information: Michelin XMCL 460/70R24 agricultural traction Rear towing hook Flashing light Power: 96kW

Condition: used, Year of construction: 2025, operating hours: 130 h, load capacity: 3,200 kg, lifting height: 5,200 mm, fuel type: diesel, power: 110 kW (149.56 HP), Equipment: cabin, ref: 7957 Cab height (without wiper): 2721 mm Cab height (with wiper): 2791 mm Overall width (over tyres): 2350 mm Wheelbase: 2550 mm Ground clearance: 420 mm Height to boom pivot pin: 1835 mm Track width: 1870 mm Front axle to bucket cutting edge distance: 1627 mm Rear axle to counterweight distance: 2143 mm Overall length (with general purpose bucket, in transport): 6322 mm Dump reach at max height: 933 mm Dump height: 4511 mm Loading height: 5182 mm Height to pin: 5367 mm Maximum dump angle at max height: 39° Transport bucket rollback angle: 41° Total length to the front of attachment: 5886 mm Operating weight: 8142 kg JCB DIESELMAX engine Displacement: 4.8L Turbocharged, intercooled 4 cylinders Gross power: 150 hp / 112 kW Transmission: JCB PS900 Powershift, 8 speeds Cyclonic air filter Cyclonic pre-filter Wide mesh cooling system Lock-up torque converter in gears 1-8 Travel speed: 40 km/h Transmission disconnect via brake pedal Tyres: Michelin XMCL 500/70R24 Cab with air conditioning Q-fit carriage with hydraulic locking Limited slip differential, front and rear axles 1 auxiliary circuit Dutch language pack Road driving mirrors Pro LED package Transmission protection Roof wiper Bluetooth radio Dual orange beacons 360° LED package: 4 front, 4 rear, and 2 lateral LED work lights LED boom lights Hedpoka Uxhofx Aaijfg Boom suspension with automatic activation (SRS) Reversible fan Toolbox Pompe and grease cartridge Cab storage box with padded cover Manual Rockinger hitch tractor homologation Power: 150 HP DIN Tyre information: 460/70R24 Delivery time (in days): 1 Power: 110 kW

Condition: used, power: 55 kW (74.78 HP), fuel type: diesel, lifting height: 9,070 mm, Year of construction: 2024, operating hours: 518 h, Unladen weight: 7,320 kg Engine manufacturer: Deutz Lifting capacity: 3,300 kg Cargo area dimensions: 468 x 233 x 230 cm Maximum speed: 25 km/h Serial number: MAN00000C01124485 Front tyre condition: 100% Rear tyre condition: 100% Hfjdjuty Eqspfx Aaieg For further information, please contact PFEIFER GROUP.

Condition: used, power: 55 kW (74.78 HP), fuel type: diesel, lifting height: 9,070 mm, Year of construction: 2024, operating hours: 527 h, Unladen weight: 7,320 kg Hjdpoutwitefx Aaisfg Engine make: Deutz Lifting capacity: 3,300 kg Cargo bay dimensions: 468 x 233 x 230 cm Maximum speed: 25 km/h Serial number: MAN00000V01125256 Front tire condition: 100 Rear tire condition: 100 Please contact PFEIFER GROUP for further information.

Condition: used, Year of construction: 2026, operating hours: 24 h, load capacity: 5,000 kg, lifting height: 7,700 mm, fuel type: diesel, construction height: 2,440 mm, tire condition: 50 %, front tire size: 460 x 70 x 24 Luft, rear tire size: 460 x 70 x 24 Luft, empty load weight: 9,300 kg, total length: 4,703 mm, color: other, Special equipment: 3rd valve, rear work lights, front work lights, heater, particulate filter, road approval (STVZO), full cab, air conditioning. Special equipment description: - Driving speed 50 km/h - 170 HP engine - CVT-2M transmission - Pressure pneumatic brake system - Cabin suspension - Hydropneumatic axle suspension - Level control +/-7° - Boom sideshift +/-4.5° - 50 km/h. Hfsdeyzi S Sspfx Aaiog

Condition: used, Year of construction: 2017, operating hours: 5,650 h, load capacity: 4,000 kg, lifting height: 8,000 mm, fuel type: diesel, construction height: 2,400 mm, power: 107 kW (145.48 HP), tire condition: 100 %, front tire size: 460/70 R 24, rear tire size: 460/70 R 24, empty load weight: 8,400 kg, total length: 5,370 mm, color: other, maximum speed: 40 km/h, Special equipment: 3rd valve, air conditioning. Special equipment description: compressed air system. Hjdpfxeyk Igxe Aaijfg

Condition: used, power: 55 kW (74.78 HP), fuel type: diesel, lifting height: 9,000 mm, Year of construction: 2024, operating hours: 202 h, Unladen weight: 7,460 kg Hfedpfx Aaoyaxh Ejisg Engine make: Deutz Lifting capacity: 3,500 kg Maximum speed: 25 km/h Serial number: MAN00000C01140511 Front tyre condition: 0 Rear tyre condition: 0 Transport dimensions (L x W x H): 4.78 x 2.27 x 2.48 m Please contact PFEIFER GROUP for further information.
