Front loader forklift

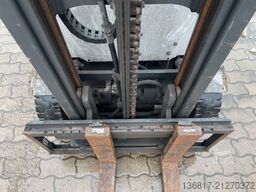

STILL RX 20-16 Elektro Duplex Seitensch. Freibhub

Condition: used, Year of construction: 2021, operating hours: 1,520 h, load capacity: 1,600 kg, lifting height: 3,560 mm, fuel type: electric, construction height: 2,260 mm, Equipment: head guard, STILL RX 20-16 Duplex Electric Forklift 1600 kg with Hydraulic Sideshift Mast: Duplex Free lift: Full free lift Lifting height: 3,560 mm Basic load capacity: 1,520 kg Drive: Electric, Mast: Duplex, Lift mast: NIHO 2,260, Free lift: Full free lift, Hydraulic sideshift, Standard overhead guard with roof window, 2x LED headlights front, 1x LED headlight rear, Warning device: STILL Safety Light Plus, Joystick control, LCD display, Driver seat: Grammer, Driver seat: mechanically suspended, Panoramic mirror, Operation: sit-on device, Rated capacity: 1,600 kg, Basic load capacity: 1,520 kg, Load center distance: 500 mm, Load distance: 355 mm, Wheelbase: 1,341 mm, Service weight without battery: 2,226 kg, Service weight with battery: 3,122 kg, Axle load with load front/rear: 3,933 / 550 kg, Axle load without load front/rear: 1,314 / 1,570 kg, Tire size front: 18x7-8, Tire size rear: 15x4 1/2-8, Number of wheels (x = driven) front/rear: 2x / 2, Track width front/rear: 932/168 mm, Mast/fork carriage tilt forward/backward: 3/8 °, Overall mast height, retracted: 2,260 mm, Free lift: Full free lift, Bcjdpfx Aoyld I Uobzow Lifting height: 3,560 mm, Overall mast height, extended: 4,180 mm, Seat height/standing height: 1,015 mm, Overall length: 3,230 mm, Total width: 1,099 mm, Total height including mast: 2,260 mm, Total height including cab roof: 2,048 mm, Fork dimensions (LxWxH): 1,200 x 100 x 40 mm, Fork carriage 2A incl. sideshift, Forks mechanically adjustable, Fork carriage width: 980 mm, Ground clearance at center of wheelbase: 123 mm, Aisle width with pallet 1,000 x 1,200 transverse: 3,209 mm, Aisle width with pallet 800 x 1,200 lengthwise: 3,333 mm, Turning radius: 1,528 mm, Travel speed with/without load: 16.0 / 16.0 km/h, Lifting speed with/without load: 0.43 / 0.60 m/s, Lowering speed with/without load: 0.51 / 0.47 m/s, Drawbar pull with/without load: 3,200 / 3,340 N, Max. drawbar pull with/without load: 9,260 / 9,120 N, Gradeability with/without load: 12.8 / 20.1 %, Max. gradeability with/without load: 21.2 / 24.8 %, Service brake: electric, Drive motor output S2 60 min: 2x 4.5 kW, Lift motor output at 20% IC: 9 kW, Lead-acid battery, Type: PZS, 05 EPZS 0625 SC, Weight: 886 kg, Battery voltage: 48 V, Battery capacity: 625 Ah, Charger: Manufacturer: STILL, Type: D400G48/80B-HFX, Output voltage: 48V, Output current: 80A, Battery: 24Pb cells, Protection rating: IP21, Heavy current: 16A,
