Three-way tipper trailerMEILLER
MZDA 18.23, Pal.- Breite, Liftachse
Basic data
Price & Location
- Seller location:
- Eichenstich 12, 21272 Egestorf, Germany
Technical details
- Maximum load weight:
- 13,340 kg
- Overall weight:
- 18,000 kg
- Axle configuration:
- 2 axles
- Loading space length:
- 4,900 mm
- Loading space width:
- 2,420 mm
- Loading space height:
- 900 mm
- Equipment:
- ABS
Details about the offer
- Listing ID:
- A202-28-350
- Reference number:
- 6297
- Update:
- 15.12.2025
Description
* Wabco EBS-E / ABS (electronic brake system with RSS)
* Emergency release device for spring-loaded cylinders
* Drum brakes 420 x 180 mm with asbestos-free brake linings and sealed brake drums
----Axle:
* 1st axle liftable
* 2 x 9 t BPW axles
----Suspension:
* Air suspension with automatic rapid lowering during tipping process to increase stability (can be deactivated for pavers)
----Electrics / Lighting:
* Tire pressure monitoring system (TPMS)
* 15-pin electrical connector
* 5-chamber tail lights with protective cover
----Drawbar / Flange eye:
* Cranked central tube drawbar with height-adjustable 50 mm flange drawbar eye (tipping over the drawbar possible, but with restricted tipping angle and depending on the towing vehicle)
----General attachments:
* Aluminum air tank
* Welded box-type steering linkage
* Jost landing gear front
* Rear underrun protection
* Closed plastic single mudguards
* Access ladder front left, outside on the bulkhead
----Tipping body:
* Steel 3-way tipper body for pallets with M-Jet drop sides
Godjxlmi Tjpfx Ahvjil
* Sidewalls with robust continuous top rail inclined inward
* Continuous sidewalls - without center stanchion -
* Right sidewall swinging via manual central locking - prepared for long lever and hinges for fold-down sidewall
* Left sidewall swinging via manual central locking and foldable with drop-side spring assist
* Tailgate swinging with automatic cam lock and 150 mm rear chute
* Manual dosing system with chain
----Floor, sidewalls, front and rear wall thickness:
* 5 mm tipper floor made of STEELECT steel (HBW 450 steel)
* Sidewalls and tailgate made of 4 mm STEELECT steel (HBW 450 steel)
* Front wall made of 3 mm STEELECT 240 steel
----Load securing:

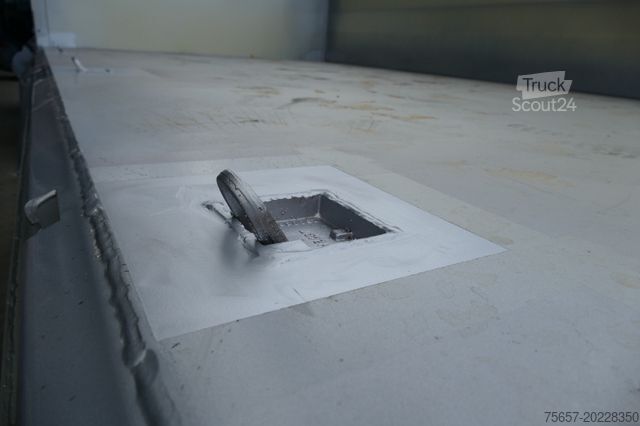

* 5 tie-down rings each side on the top rail, plus 5 tie-down rings per side in the floor
----Painting:
* Chassis painted in RAL 7021 black grey
* Drop side panels painted in RAL 9006 white aluminum
----General information:
* Vehicle body complies with EN 12642 XL
* New vehicle with manufacturer's warranty
* Errors and prior sale excepted
----Delivery time
* Available immediately ex Egestorf
The listing was translated automatically. Translation errors are possible.
