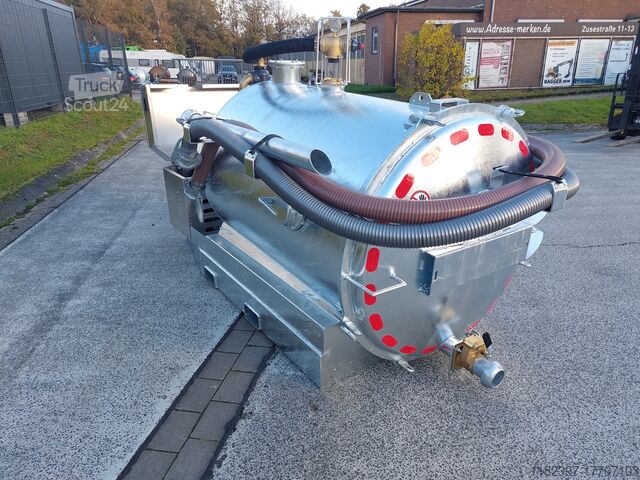

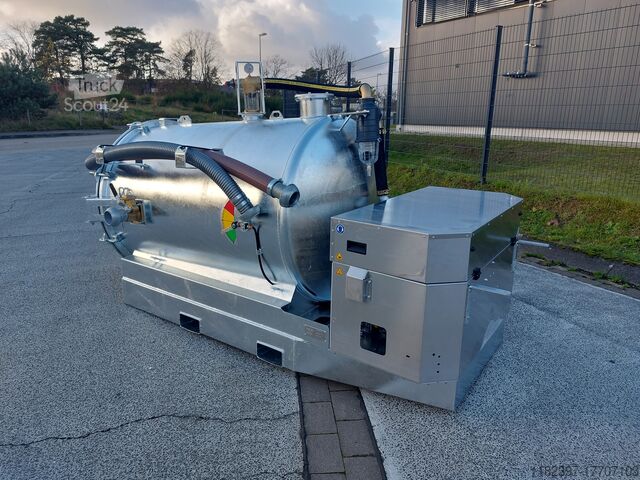

Suction structure

Schmies.eu STS VS-1.5 Saugfass, Vakuumsaugfass

Basic standard equipment
STS VS-1.5

Tank
- Tank 1,500 liter capacity
- Hot-dip galvanized tank
- Side flushing opening in the tank to remove impurities or blockages without opening the tank lid
- Container lid can be opened completely to the passenger side and secured with hook bolts
- 2 safety stages fitted as standard to prevent damage to the compressor
- Syphon separator
- Overflow with 2 balls and sight glass
- Pressure gauge on oversuction set with protective bracket
- Mechanical fill level indicator with color scale

Motor and compressor
- MEC 3000 vacuum compressor with 3,500 liters air capacity
- Vacuum max. -0.8bar (continuous operation at -0.5bar)
- Overpressure max. 0.49 bar
- Maintenance-free V-belt drive for vacuum compressor
- B&S industrial motor Vanguard 13 hp
- Electric starter, oil sensor, control panel with ignition lock, battery and tank
- Internal intake hose to avoid protection in the motor unit
- Silencer for vacuum compressor with oil catcher
- Stainless steel heat deflector plate over the exhaust
- 1 liter biodegradable compressor oil stored in oil bottle holder
- 5 liter petrol can in holder
- Standard funnel with long neck for changing and refilling engine oil
- All engine components and accessories stored in lockable engine box
- Engine box made of aluminum and powder-coated in the color of your choice

Chassis/base frame
- Self-supporting chassis completely hot-dip galvanized
- Forkliftable base frame

Pgsdpfju Rpc Usx Afheu

Connections and hoses
- 2x suction hoses (3") 5m long with Perrot couplings
- 1x suction lance 3" (1500mm long)
- 1x Perrot connection (3") in the tank cover at the bottom
- 1x Perrot connection (3") on the right side in the direction of travel



If you are looking for something other than this device, please do not hesitate to contact us directly. Our own vehicle construction leaves almost nothing to be desired.


For more detailed information and/or pictures, please contact us directly. You will find a large selection of other vehicles to BUY or RENT from us.
Subject to alterations, prior sale and errors excepted. The buyer is obliged to independently check the condition and equipment of the goods. The sale is exclusively subject to our terms and conditions and under exclusion of any warranty.

The listing was translated automatically. Translation errors are possible.
